Industrial filtration
CicloFlux filters
Cyclonic separation and bag or cartridge filtration integrated into compact equipment for industrial particulate control.
Request an application assessment ↗
Separation and filtration
Cyclonic separation and filtration combined for greater efficiency
CicloFlux filters integrate cyclonic separation and bag or cartridge filtration in a single unit. Cyclonic action pre-separates part of the particulate, particularly larger particles, while filter elements retain finer particles.
This combination reduces dust loading reaching the filter elements, supporting stable filtration and potentially reducing cleaning frequency and bag or cartridge wear. The result is more effective use of the assembly, with potential reductions in compressed air consumption and maintenance requirements.
Benefits depend on particulate characteristics and operating conditions and are considered when sizing each application.
Engineering applied to separation and filtration
CicloFlux design integrates cyclonic separation, filtration, and collected material discharge. Equipment can use filter bags or cartridges according to particulate characteristics and operating conditions.
- Cyclonic separationConfiguration defined by flow rate, concentration, and particulate size distribution, promoting pre-separation upstream of filter elements.
- Filter elementsChoice of bags or cartridges, with material and filter area selected for temperature, moisture, gas composition, and dust characteristics.
- Cleaning and monitoringCleaning system and pressure drop monitoring specified for operating duty.
- Discharge and maintenanceCollected material removal, integration with other equipment, and access for filter element inspection and replacement considered in assembly configuration.
Applications and industries
CicloFlux filters are suited to processes generating particulates of different sizes, where preliminary cyclonic separation can reduce dust loading reaching filter bags or cartridges.
They can form part of extraction and dust collection systems for grinding, screening, conveying, and material transfer, depending on process characteristics.
Application industries include:
Equipment configuration and the choice of bags or cartridges consider particle size distribution, concentration, and particulate properties, along with temperature, moisture, and operating duty.
Technical information
CicloFlux sizing considers the combined operation of cyclonic separation and filtration. Main specification parameters include:
| Flow rate and operating duty | Air or gas volume to treat, flow variations, and operating hours. |
|---|---|
| Particulate characteristics | Concentration, particle size distribution, density, abrasiveness, adhesion, and combustibility. |
| Temperature and moisture | Normal conditions, temperature peaks, and potential condensation. |
| Cyclonic separation | Configuration sized for flow rate and particulate characteristics, integrated with the filtration stage. |
| Filter elements | Choice of bags or cartridges, material, and filter area compatible with the application. |
| Cleaning and monitoring | Cleaning system, available utilities, and pressure drop monitoring. |
| Discharge and installation | Collected material removal method, interfaces with other equipment, and inspection and maintenance access. |

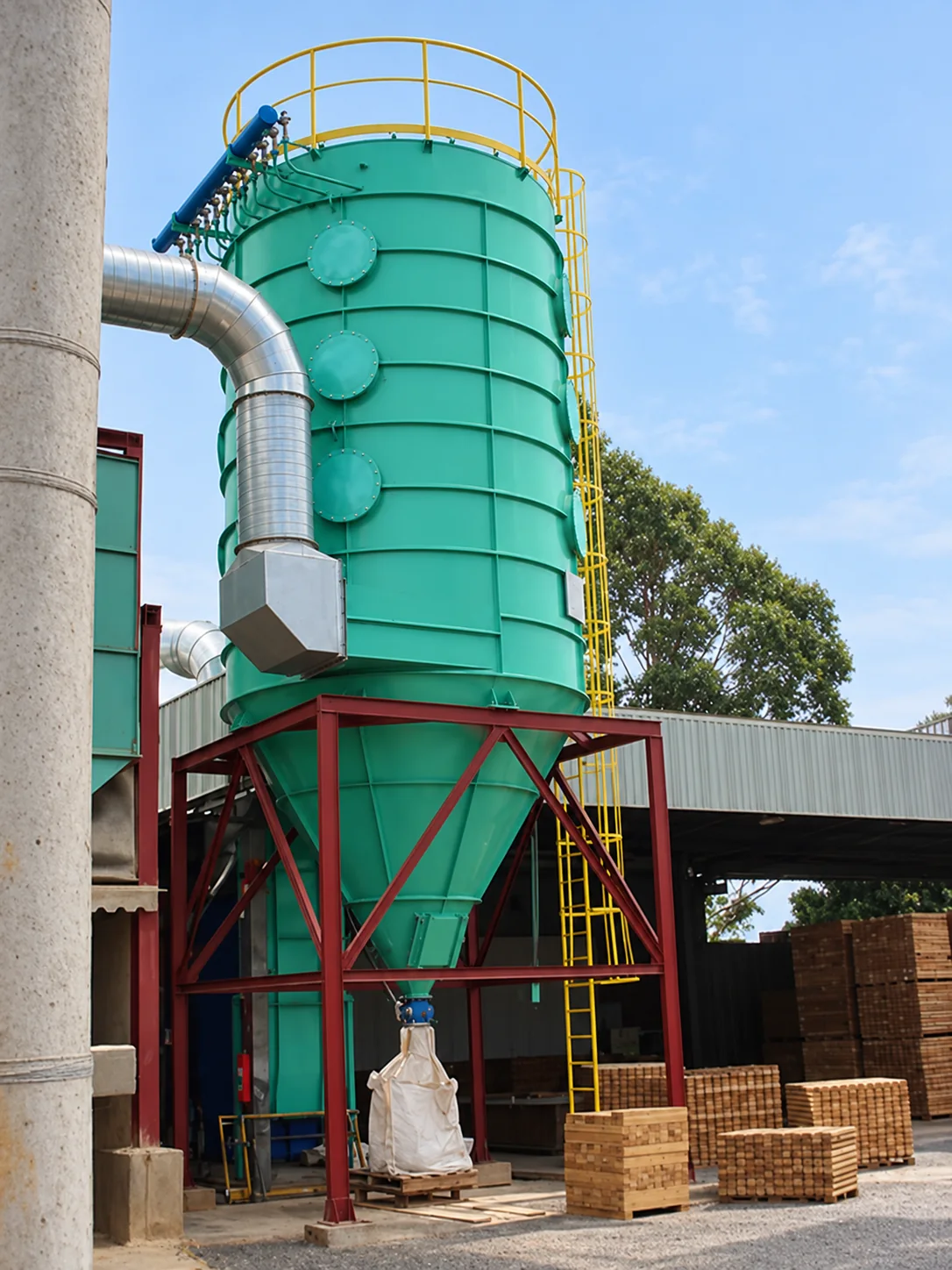

CicloFlux on site
Shall we assess your application?
Share process and particulate characteristics and operating conditions. Kleema engineers can assess CicloFlux configuration and the choice of filter bags or cartridges for your installation.
